FOR PROTOTYPES AND DEVELOPMENT SYSTEMS

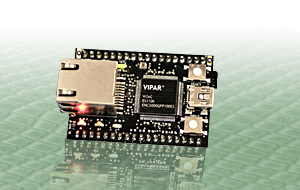

Using the VIPAR evaluation modules all functions and interfaces of the VIP1502 Internet chip can be evaluated. In this way prototypes and development systems can be realised and the feasibility of device-specific web applications can be gauged. In many cases the entire VIPAR-specific software could be developed based on the evaluation model, thus separating it from the hardware development. In addition, the board also serves as a reference: the external wiring can be used as a reference point for development, application notes and example implementations can always be applied to the evaluation modules.

TECHNICAL DATA

• Networking via Ethernet, USB (RNDIS / CDC-ECM) and WLAN
• Storage media SD card and SPI flash
• UART as a host interface, command interface and tunnel port
• Application interfaces: analogue and digital inputs and outputs, PWM outputs, SPI and I2C
• Upload of the web application and configuration via TFTP
